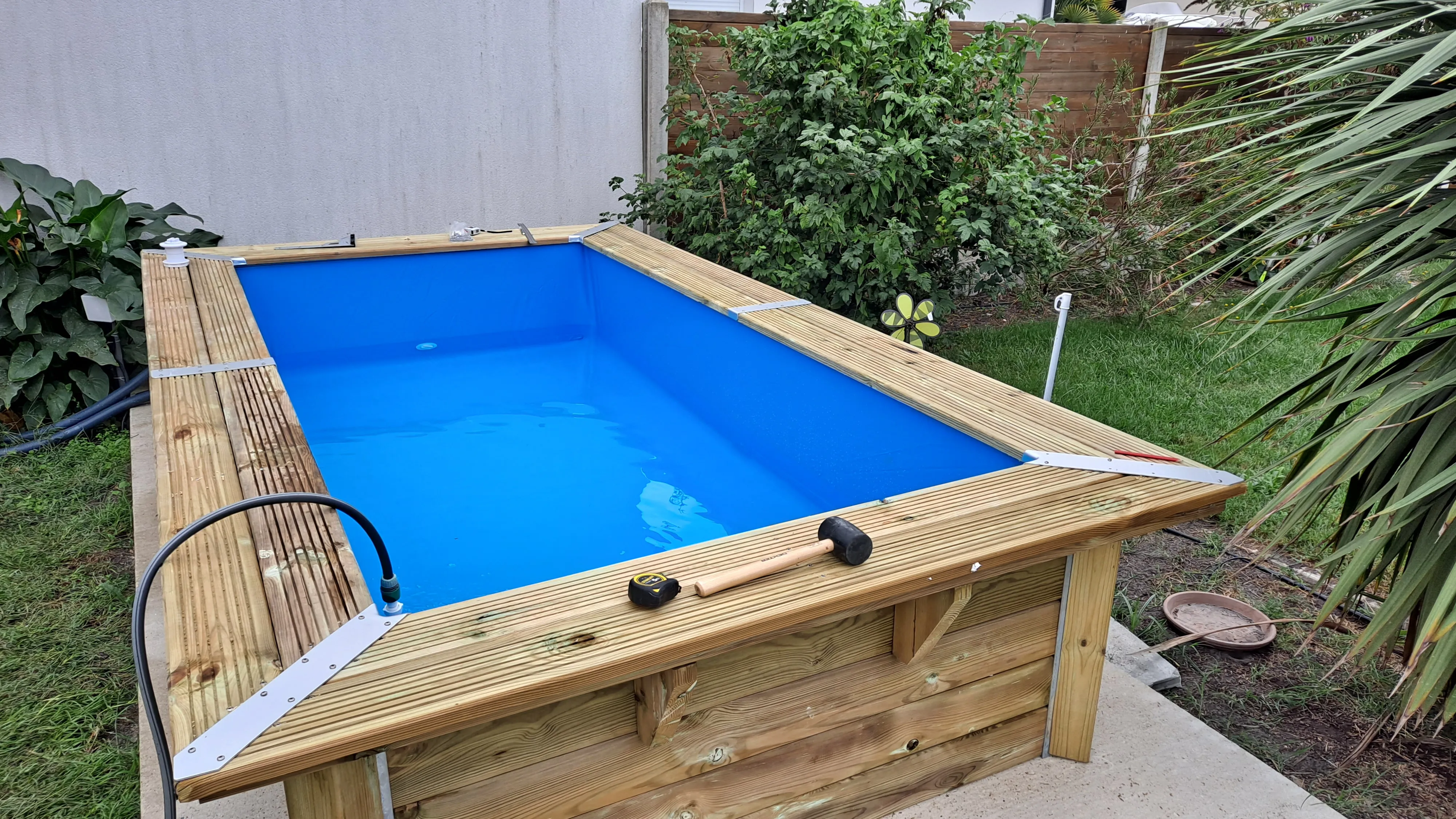

A swimming pool is an excellent addition to any home, especially during hot summer months. Not only does it provide a perfect way to relax after work, but with proper automation, you can also optimize energy consumption by controlling the pool pump motor efficiently.

Hardware Requirements

For this automation project, I selected the following components:

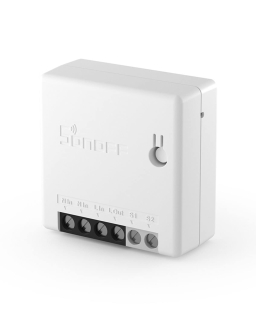

INTEX SX1500SONOFF ZBMiniOWON THS317-ET
Pool pumpSONOFF ZBMiniOWON THS317-ET

I prefer using Zigbee devices for my home automation setup due to their reliability and low power consumption.

Installation Process

Note: The INTEX SX1500 cannot be triggered directly as it has a built-in scheduler. I modified the electrical box to bypass this feature and enable direct control of the pool pump.

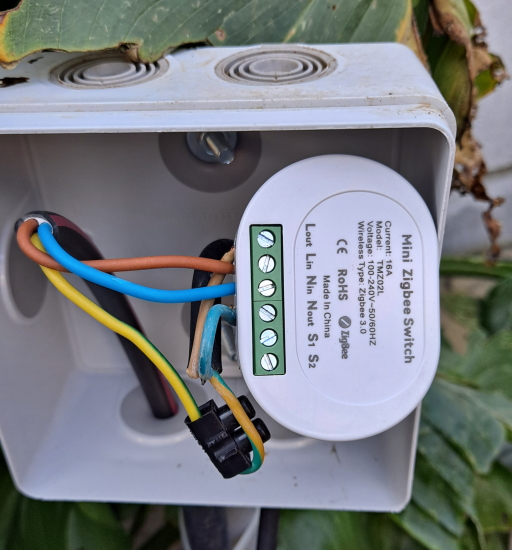

  1. Connect the pump to the ZBMini following the wiring diagram below:

ZBMini Wiring

  1. Place the temperature sensor in the water and position the electrical box containing the ZBMini in a suitable location

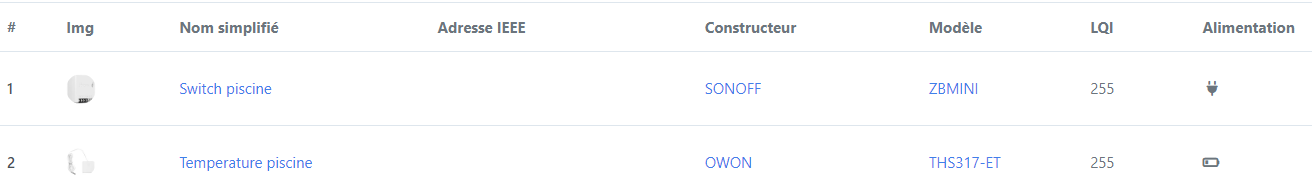

  2. Open Home Assistant, navigate to Zigbee2MQTT, and pair each new device:

Zigbee2mqtt

The OWON THS317-ET battery typically lasts approximately 12 months.

Home Assistant and Node-RED Configuration

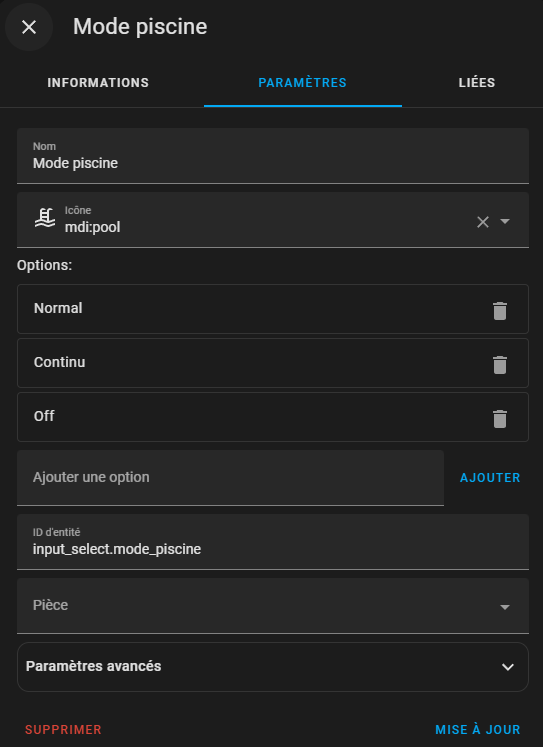

Creating Helpers

Create a new helper in Home Assistant:

Pool mode

Node-RED Flow Setup

Create a new flow in Node-RED with the following components:

  1. Add a cron trigger
  2. Check the current “Pool mode”
  3. Retrieve the temperature sensor value
  4. Evaluate the temperature:
    • Below 19°C
    • Between 19°C and 28°C
    • Above 28°C
  5. Set the appropriate delay in milliseconds and display the value
  6. Implement a wait timer
  7. Call Home Assistant service to start/stop the pump

You can import my flow configuration:

[{"id":"483e9a57b37cdc8d","type":"tab","label":"Piscine","disabled":false,"info":"","env":[]},{"id":"54f86a2f80028e81","type":"api-current-state","z":"483e9a57b37cdc8d","name":"Temperature piscine","server":"c083033.86b9","version":3,"outputs":1,"halt_if":"","halt_if_type":"str","halt_if_compare":"is","entity_id":"sensor.temperature_piscine_temperature","state_type":"str","blockInputOverrides":false,"outputProperties":[{"property":"temperature","propertyType":"msg","value":"","valueType":"entityState"}],"for":"0","forType":"num","forUnits":"minutes","override_topic":false,"state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","x":460,"y":720,"wires":[["41106ef97c8b87d1"]]},{"id":"09e62ee1149b049d","type":"cronplus","z":"483e9a57b37cdc8d","name":"Filtration","outputField":"payload","timeZone":"","persistDynamic":false,"commandResponseMsgOutput":"output1","outputs":1,"options":[{"name":"schedule1","topic":"topic1","payloadType":"default","payload":"","expressionType":"cron","expression":"0 12,20 * * *","location":"","offset":"0","solarType":"all","solarEvents":"sunrise,sunset"}],"x":60,"y":720,"wires":[["5ba7f500dec07972"]]},{"id":"41106ef97c8b87d1","type":"switch","z":"483e9a57b37cdc8d","name":"Temps de filtration","property":"temperature","propertyType":"msg","rules":[{"t":"lt","v":"19","vt":"num"},{"t":"btwn","v":"19","vt":"num","v2":"28","v2t":"num"},{"t":"gt","v":"28","vt":"num"}],"checkall":"false","repair":false,"outputs":3,"x":730,"y":720,"wires":[["62487d3928d7818a"],["d2d4dd97d3a866d6"],["0c7a7c757d7beb72"]]},{"id":"b5e423120081925c","type":"trigger","z":"483e9a57b37cdc8d","name":"Durée traitement","op1":"on","op2":"off","op1type":"str","op2type":"str","duration":"250","extend":false,"overrideDelay":true,"units":"ms","reset":"","bytopic":"all","topic":"topic","outputs":2,"x":1250,"y":720,"wires":[["3ef0ae743e1b3881"],["6ca837267708a777"]]},{"id":"62487d3928d7818a","type":"change","z":"483e9a57b37cdc8d","name":"1h","rules":[{"t":"set","p":"delay","pt":"msg","to":"3600000","tot":"str"},{"t":"set","p":"filtration","pt":"msg","to":"1h","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":990,"y":660,"wires":[["b5e423120081925c"]]},{"id":"d2d4dd97d3a866d6","type":"change","z":"483e9a57b37cdc8d","name":"1h30","rules":[{"t":"set","p":"delay","pt":"msg","to":"5400000","tot":"str"},{"t":"set","p":"filtration","pt":"msg","to":"1h30","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":990,"y":720,"wires":[["b5e423120081925c"]]},{"id":"0c7a7c757d7beb72","type":"change","z":"483e9a57b37cdc8d","name":"2h","rules":[{"t":"set","p":"delay","pt":"msg","to":"7200000","tot":"str"},{"t":"set","p":"filtration","pt":"msg","to":"2h","tot":"str"}],"action":"","property":"","from":"","to":"","reg":false,"x":990,"y":780,"wires":[["b5e423120081925c"]]},{"id":"3ef0ae743e1b3881","type":"api-call-service","z":"483e9a57b37cdc8d","name":"Allumer piscine","server":"c083033.86b9","version":5,"debugenabled":false,"domain":"switch","service":"turn_on","areaId":[],"deviceId":[],"entityId":["switch.switch_piscine"],"data":"","dataType":"jsonata","mergeContext":"","mustacheAltTags":false,"outputProperties":[{"property":"message","propertyType":"msg","value":"Allumée","valueType":"str"}],"queue":"none","x":1520,"y":660,"wires":[["7de9d7c35046f82d"]]},{"id":"7de9d7c35046f82d","type":"ha-wait-until","z":"483e9a57b37cdc8d","name":"Wait on or retry","server":"c083033.86b9","version":2,"outputs":2,"entityId":"switch.switch_piscine","entityIdFilterType":"exact","property":"state","comparator":"is","value":"on","valueType":"str","timeout":"1","timeoutType":"num","timeoutUnits":"minutes","checkCurrentState":true,"blockInputOverrides":true,"outputProperties":[],"x":1520,"y":620,"wires":[["e82f89371205d55a"],["3ef0ae743e1b3881"]]},{"id":"6ca837267708a777","type":"api-call-service","z":"483e9a57b37cdc8d","name":"Eteindre piscine","server":"c083033.86b9","version":5,"debugenabled":false,"domain":"switch","service":"turn_off","areaId":[],"deviceId":[],"entityId":["switch.switch_piscine"],"data":"","dataType":"jsonata","mergeContext":"","mustacheAltTags":false,"outputProperties":[{"property":"message","propertyType":"msg","value":"Eteinte","valueType":"str"}],"queue":"none","x":1520,"y":780,"wires":[["2e25dea1e10644d6"]]},{"id":"2e25dea1e10644d6","type":"ha-wait-until","z":"483e9a57b37cdc8d","name":"Wait off or retry","server":"c083033.86b9","version":2,"outputs":2,"entityId":"switch.switch_piscine","entityIdFilterType":"exact","property":"state","comparator":"is","value":"off","valueType":"str","timeout":"1","timeoutType":"num","timeoutUnits":"minutes","checkCurrentState":true,"blockInputOverrides":true,"outputProperties":[],"x":1520,"y":820,"wires":[["e82f89371205d55a"],["6ca837267708a777"]]},{"id":"5ba7f500dec07972","type":"api-current-state","z":"483e9a57b37cdc8d","name":"Mode piscine","server":"c083033.86b9","version":3,"outputs":2,"halt_if":"Normal","halt_if_type":"str","halt_if_compare":"is","entity_id":"input_select.mode_piscine","state_type":"str","blockInputOverrides":false,"outputProperties":[{"property":"mode","propertyType":"msg","value":"","valueType":"entityState"}],"for":"0","forType":"num","forUnits":"minutes","override_topic":false,"state_location":"payload","override_payload":"msg","entity_location":"data","override_data":"msg","x":230,"y":720,"wires":[["54f86a2f80028e81"],[]]},{"id":"b5bb7276d000536a","type":"server-state-changed","z":"483e9a57b37cdc8d","name":"Mode continu","server":"c083033.86b9","version":4,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"input_select.mode_piscine","entityidfiltertype":"exact","outputinitially":false,"state_type":"str","haltifstate":"Continu","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":"0","forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"outputProperties":[],"x":130,"y":860,"wires":[["9a74a6afbea67721"],["9e74d356eeff4c52"]]},{"id":"9a74a6afbea67721","type":"api-call-service","z":"483e9a57b37cdc8d","name":"Allumer piscine","server":"c083033.86b9","version":5,"debugenabled":false,"domain":"switch","service":"turn_on","areaId":[],"deviceId":[],"entityId":["switch.switch_piscine"],"data":"","dataType":"jsonata","mergeContext":"","mustacheAltTags":false,"outputProperties":[{"property":"message","propertyType":"msg","value":"Allumée","valueType":"str"}],"queue":"none","x":380,"y":840,"wires":[[]]},{"id":"9e74d356eeff4c52","type":"api-call-service","z":"483e9a57b37cdc8d","name":"Eteindre piscine","server":"c083033.86b9","version":5,"debugenabled":false,"domain":"switch","service":"turn_off","areaId":[],"deviceId":[],"entityId":["switch.switch_piscine"],"data":"","dataType":"jsonata","mergeContext":"","mustacheAltTags":false,"outputProperties":[{"property":"message","propertyType":"msg","value":"Eteinte","valueType":"str"}],"queue":"none","x":380,"y":900,"wires":[[]]},{"id":"e82f89371205d55a","type":"ha-sensor","z":"483e9a57b37cdc8d","name":"Filtration piscine","entityConfig":"ca7e7d1218501982","version":0,"state":"","stateType":"date","attributes":[{"property":"temperature","value":"temperature","valueType":"msg"},{"property":"duration","value":"filtration","valueType":"msg"},{"property":"last_start","value":"","valueType":"date"},{"property":"last_stop","value":"","valueType":"date"}],"inputOverride":"allow","outputProperties":[],"x":1780,"y":720,"wires":[[]]},{"id":"c083033.86b9","type":"server","name":"Home Assistant","version":5,"addon":true,"rejectUnauthorizedCerts":true,"ha_boolean":"y|yes|true|on|home|open","connectionDelay":true,"cacheJson":true,"heartbeat":false,"heartbeatInterval":30,"areaSelector":"friendlyName","deviceSelector":"friendlyName","entitySelector":"friendlyName","statusSeparator":"at: ","statusYear":"hidden","statusMonth":"short","statusDay":"numeric","statusHourCycle":"h23","statusTimeFormat":"h:m","enableGlobalContextStore":true},{"id":"ca7e7d1218501982","type":"ha-entity-config","server":"c083033.86b9","deviceConfig":"","name":"sensor config for Filtration piscine","version":6,"entityType":"sensor","haConfig":[{"property":"name","value":"filtration_piscine"},{"property":"device_class","value":""},{"property":"icon","value":""},{"property":"unit_of_measurement","value":""},{"property":"state_class","value":""},{"property":"last_reset","value":""}],"resend":true}]

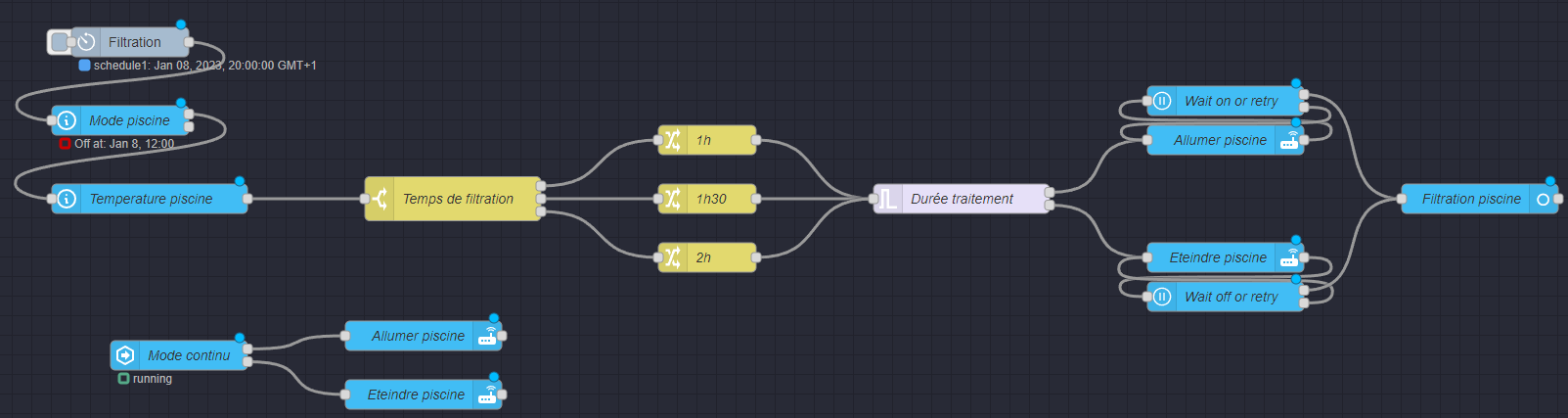

Your Node-RED flow should look like this:

Flow

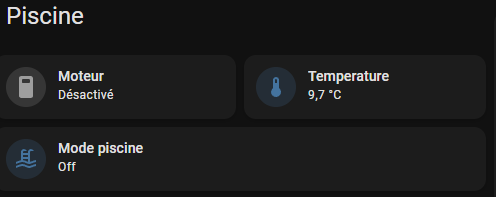

Home Assistant Dashboard

Create a custom dashboard in Home Assistant to monitor and control your pool:

Dashboard

That’s it! Your swimming pool is now fully automated, allowing you to enjoy your pool while saving energy and money. 😄
